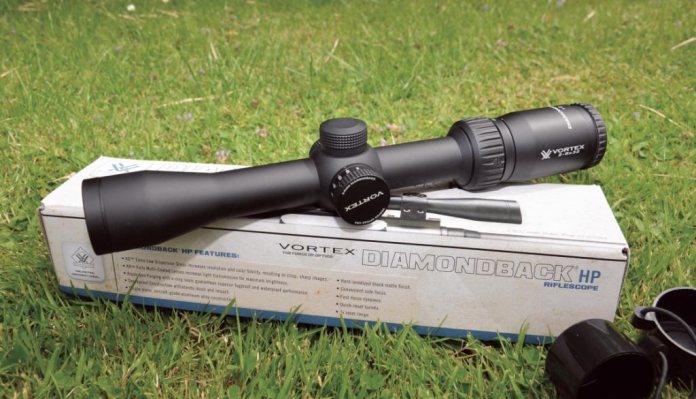

Vortex Diamondback HP 2-8 x 32

Vortex Diamondback HP 2-8 x 32

Vortex are a relatively new name in optics, (from around 2002), but they have fast built a reputation for rugged, well thought out products, and great aftersales service. It’s an American brand, and they certainly seem to have a dynamic approach, but as is usual these days, many of their products are made around the globe to keep costs competitive.

This particular Diamondback model offers a neat specification, and whilst the ultra-compact dimensions make it suitable for a variety of situations, I reckon it comes in about ideal for my favoured discipline of Hunter Field Target.

Compact spec

Let’s not forget, HFT differs from FT in that the competitor is not allowed to touch the scope’s settings once shooting has commenced; so parallax adjustment is effectively prevented, and super high magnification is rendered unusable, due to the way the competitor needs to be able to view targets from eightyards through to 45-yards with acceptable clarity.

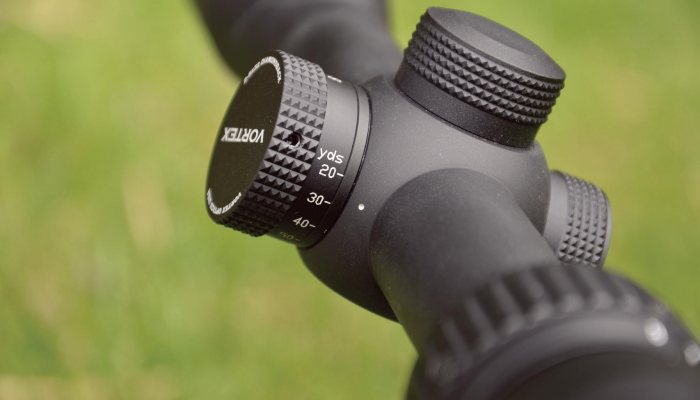

Any HFT scope needs ideally a low sight line and relatively modest magnification therefore, so the Vortex Diamondback under the spotlight here, is just about ideal, with a modest sized 32mm objective, and its 2-8x mag option. The side parallax adjustment is also kept nice and low profile, with no tactical chunky turrets to be seen. Parallax adjustment starts from a minimum of 20-yards focus, so it allows the competitor to fine-tune clarity as desired, at a specific distance of their choosing. Parallax distances on this Vortex are marked in 10- yard intervals on the dial, from 20-yards through to 100-yards, then in 100-yard intervals from 100 through to 500, then infinity.

Low profile, screw cap turrets are provided, and finger friendly adjustment comes with a positive click. Click values are ¼ MOA, which is near as damn it to ¼-inch at 100-yards. The reticle utilised is termed ‘Dead-Hold’ by Vortex, and it’s similar to a Hawke MAP design, with small dashes rather than dots, set along the windage axis, and lower stadia. Outer thick posts draw the eye in, and it works well overall.

story continues below...

  • Vortex Diamondback HP 2-8 x 32 - image {image:count}

    click on image to enlarge

  • Vortex Diamondback HP 2-8 x 32 - image {image:count}

    click on image to enlarge

  • Vortex Diamondback HP 2-8 x 32 - image {image:count}

    click on image to enlarge

Proportions are wholly usable for airgun, with the spacing meaning that the reticle can be used to bracket small HFT style target kill zones. Perhaps the only negative concerns the fact that there is no upper dash marker for closer target trajectory. Central cross hairs are kept close however, so there is a usable relationship between the cross hair and outer thick posts. As someone who shoots with a standard 30/30 reticle most of the time, it really is all about familiarity and practise.

Quick prep

The usual fast-focus ring features at the rear, and this has a reassuringly firm feel. Use this to bring the reticle and target into focus together. But what really stands out with this model, is a super sharp image, and the depth of field. Clarity is helped by what Vortex term XD Extra Low Dispersion Glass, which apparently increases resolution and colour fidelity.

XR Fully Multi-Coated lenses increase light transmission to maximise brightness. Sales blurb aside, the image is good.

With the side parallax set to just over 25-yards, a popular setting for HFT, and the mag left on 8x, this model can take on the target course. It’s all about that usable level of clarity, given as mentioned, the key ‘no adjustment’ rules of the sport.

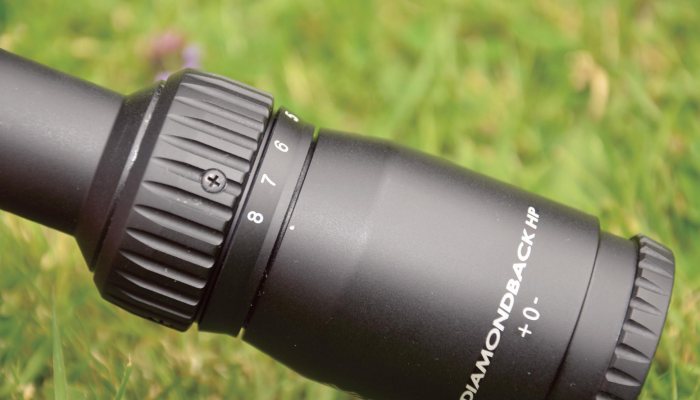

Setting zero was achieved and then checked using the usual grid test, moving through right, down, left and up, by a measured value. Zero returned on cue, and with the edge-to-edge clarity and lack of aberrations, I was left mightily impressed. With 60 clicks per turret revolution, and just under seven revolutions of adjustment in both windage and elevation, there’s nothing to fear on that score. The hard anodised matt black finish to the one-inch aircraft grade aluminium body tube is also wholly practical, and with good grip afforded by the magnification collar, there really is little to find fault with here.

Conclusion

Neat and compact says it all, with a specification that’s equally at home, whether hunting live quarry or silverware in HFT. And for the record, this model is shockproof, fogproof and waterproof, courtesy of Argon gas purging. Basic elasticated lens caps are provided to protect the glass, but the real attraction with this and indeed any Vortex comes with the company’s now renowned unlimited, unconditional lifetime warranty, which has to be a major selling point, bringing peace of mind to owning this neat little scope. Having met the UK distribution boys and a few company operatives from the States, I have to say there’s an energy and dynamism behind Vortex that says they mean business. Having now spent time with this super compact Diamondback, all I can say is I haven’t been disappointed.



gun
features

  • Model: Vortex Diamondback HP 2-8X32
  • Magnification: 2-8x variable
  • Objective Lens Diameter: 32mm
  • Reticle: Dead-Hold BDC
  • Illumination: No
  • Linear Field of View: 42-12ft @100-yards (variable with mag)
  • Weight: 15.9oz
  • Eye Relief: 4.6-inches
  • Click Values: ¼ MOA
  • Body Tube: One-inch
  • Minimum Focus: 20-yards marked
  • Length: 11.6-inches
  • Turret Type: Low profile, screw cap, finger friendly
  • Clicks Per Rotation: 60
  • Max Windage Adjust: 6.75 revolutions/110MOA
  • Max Elevation Adjust: 6.75 revolutions/110 MOA
  • Price: £198.49 including lens caps
  • Contact: www.vortexoptics.com
